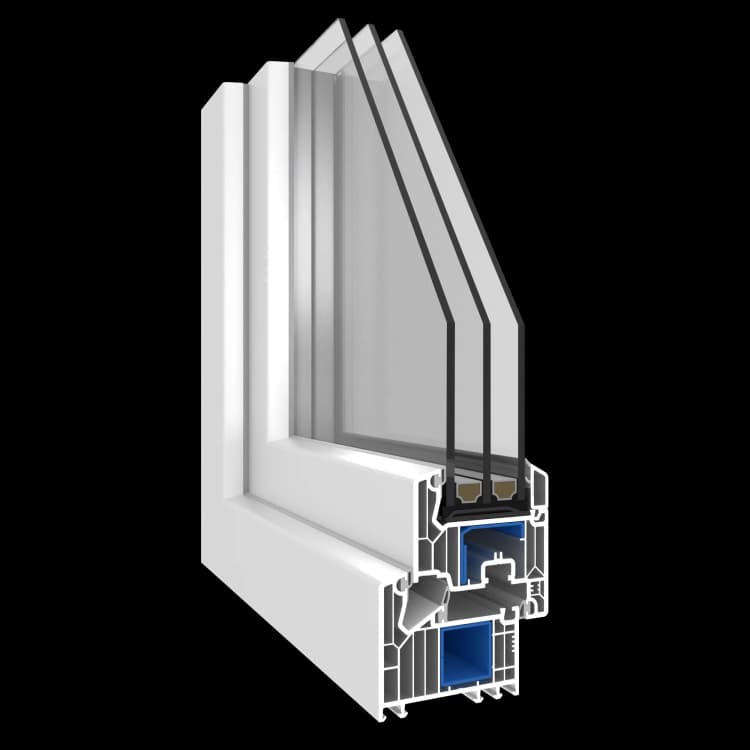

VEKA 82 MD
Profile: 82 mm
A class A system (3 mm outer walls) with an 82 mm installation depth and three sealing gaskets. The 7-chamber frame geometry and the internal galvanised steel reinforcement give high mechanical stability against twisting. The profile can take thick triple glazing units (thermally and acoustically insulated), making it structurally recommended for large glazed areas, balcony doors or windows directly exposed to gusts of wind and bad weather.
See other window profiles
Passive house
Exterior aluminium cladding
50 RAL foils
Technical parameters
- Profile depth
- 82 mm
- Construction depth
- 82 mm
- Frame insulation chambers
- 7 chambers
- Sash insulation chambers
- 6 chambers
- Profile thermal insulation Uf
- 1.0 W/m²K
- Seals
- 3 - middle seal (MD)
- Outer wall
- 3 mm - Class A (SR EN 12608)
- Combination height
- 114 - 164 mm (depending on the sash and frame type)
- Available foils
- Over 50 RAL colours, wood imitations, metallic and textured finishes (VEKA Spectral)
