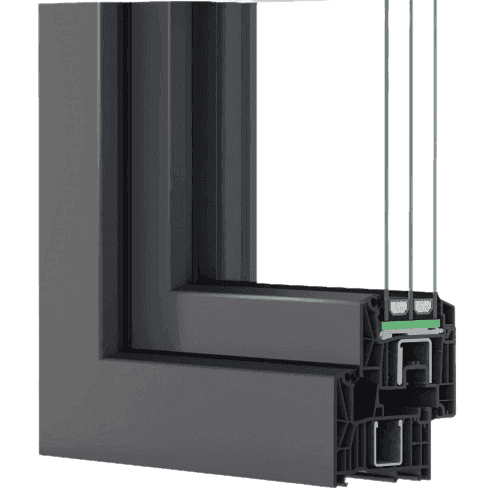

REHAU SYNEGO 80 MD
Profile: 80 mm
An 80 mm deep profile with three rows of elastic gaskets that block air and water from entering the frame directly. The outer surface of the profile is specially treated (HDF technology) to be perfectly smooth, which stops dirt from settling in the pores of the plastic and makes cleaning much easier.
Burglary resistance RC3
Acoustic insulation 47 dB
Balcony and terrace doors
SYNEGO windows, balcony and terrace doors
- Profile depth
- 80 mm
- Frame/sash face widths
- 109 mm to 175 mm
- Construction depth
- 80 mm
- Thermal insulation Uf (EN 12412-2)
- up to 0,94 W/(m²K)
- Sound insulation Rw (ISO 10140-2)
- up to 47 dB
- Burglar resistance (EN 1627)
- up to class RC 3
- Wind load resistance (EN 12210)
- up to class B5
- Driving rain tightness (EN 12208)
- up to class 9A
- Air permeability (EN 12207)
- up to class 4
- Operating forces (EN 13115)
- Class 1
Other systems in the SYNEGO range

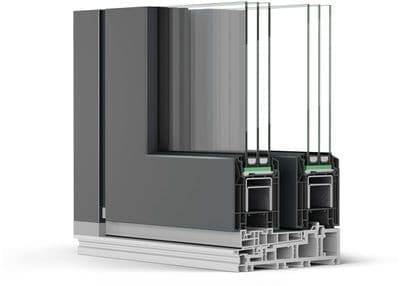

SYNEGO lift and slide doors
- Frame/sash face widths
- 179 mm (103 mm with panoramic sash)
- Frame/sash construction depth
- 190 mm/80 mm
- Thermal insulation Uf (EN 12412-2)
- up to 1,3 W/(m²K)
- Sound insulation Rw (ISO 10140-2)
- up to 43 dB
- Burglar resistance (EN 1627)
- up to class RC 2
- Wind load resistance (EN 12210)
- up to class B3
- Driving rain tightness (EN 12208)
- up to class 9A
- Air permeability (EN 12207)
- up to class 4

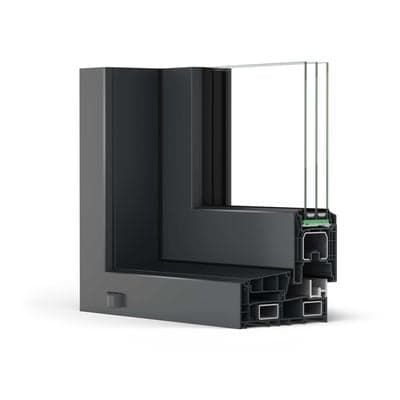

SYNEGO SLIDE sliding doors
- Frame/sash face widths
- 65 mm/101 mm
- Frame/sash construction depth
- 156 mm/80 mm
- Thermal insulation Uf (EN 12412-2)
- up to 1,3 W/(m²K)
- Sound insulation Rw (ISO 10140-2)
- up to 44 dB
- Burglar resistance (EN 1627)
- up to class RC 2
- Wind load resistance (EN 12210)
- up to class B3
- Driving rain tightness (EN 12208)
- up to class 8A
- Air permeability (EN 12207)
- up to class 4

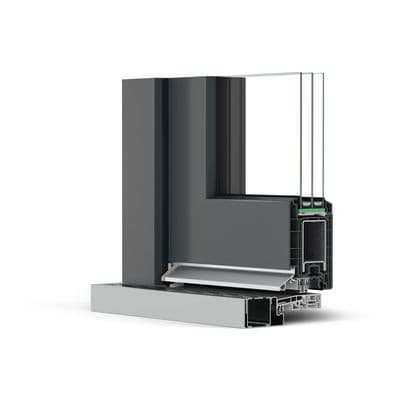

SYNEGO entrance doors
- Frame/sash sight widths
- 174 mm
- Construction depth
- 80 mm
- Thermal insulation Uf (EN 12412-2)
- up to 1,2 W/(m²K)
- Sound insulation Rw (ISO 10140-2)
- depending on the infill used
- Burglar resistance (EN 1627)
- up to class RC 2
- Wind load resistance (EN 12210)
- up to class B2
- Driving rain tightness (EN 12208)
- up to class 4A
- Air permeability (EN 12207)
- up to class 2
